What is the continuous Hot-dip galvanizing line?
The continuous Hot-dip galvanized is manufactured using cold-rolled steel coil which is coated with a thin layer of high grade zinc on both sides by hot dip zinc coating process. It resists corrosion by supplying barrier and cathodic protection, as well as through the development of the zinc patina. These three levels of corrosion protection provide galvanized steel with maintenance-free longevity for decades. GEIT not only manufacture and install equipment, but also carry out professional technical innovation to the galvanizing plants.
Specification information:
| aseboard | cold-rolled carbon structural steel, quality cold-rolled carbon structural steel and low alloy steel |
| Width of steel strip | 500~1600mm |
| Thickness of steel strip | 0.10-7.5mm |
| External diameter of steel coil | φ800-2500mm |
| Process speed | 80-200m/min |
| Energy | electricity, gas, liquefied petroleum gas, gas, steam, compressed air and so on |
| State of cladding | ordinary spangle, small spangle, no spangle, finishing spangle |
| Thickness of cladding | 50-300g/m2 (double sides) |
| Process after cladding | finishing, straightening, fingerprint resistant coating / passivating, oiling |

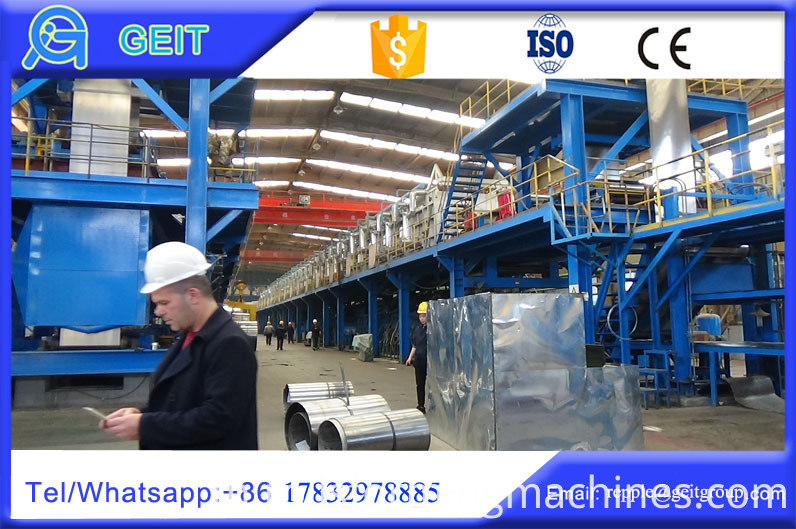

continuous Hot Dip Galvanizing Line work flow:
Based on the function of the unit and process procedures of steel strip, theunit is divided into entry segment, intermediate processing segment and exitsegment. Entry segment includes uncoiling, shearing, welding whichcontinuously prepares the strip for next segment. Intermediate processingsegment consists of degreasing, annealing reduction, plating zinc, planishing& leveling, etc. to finish processing steel strip. Exit segment finishes separatingcoils and coiling.
The process is as follows:
Feeding coil → Uncoiling → Cutting the end of steel strip →Welding → Degreasing (alkali spray+ alkali brushing + waterwashing + three-stages` water cleaning) → Hot air drying →(Entry looper) →Annealing reduction → Plating Al-Zn → Cooling by air → Cooling by water → Drying by hot air→ Planishing → Leveling→ Passivating→ Drying by hot air → (Exit looper ) → Inspection table →Separating → Coiling→ Unloading coils → Packing.

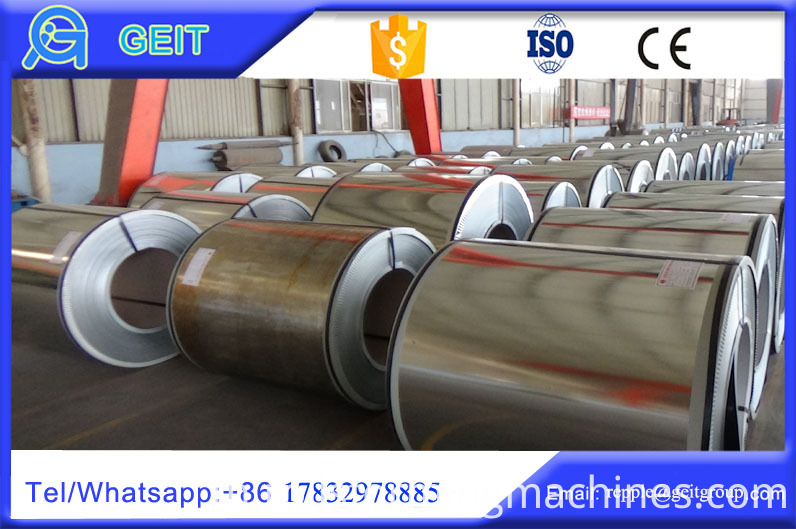

Galvanizing coil application:
A large number of galvanized steel plate used in automobile manufacturing, cooler, construction, ventilation and heating facilities and furniture manufacturing and other field, galvanized become important steel anti-corrosion method, not only because the zinc can be formed a protective layer in the steel surface but also because it has the effect of cathodic protection, when the galvanized layer be damaged, it still can through the cathodic corrosion protection to prevent the iron base.
Looking for ideal Continuous Galvanizing Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Hot Dip Galvanizing Line are quality guaranteed. We are China Origin Factory of Galvanizing Line. If you have any question, please feel free to contact us.
