Steel Guard Rail Roll Forming Machine also named expressway guardrail forming machine,it is used for producing three waves shaped guardrail. It possesses good features of high corrosion resistance, high aging resistance, elegant appearance and easy installation.

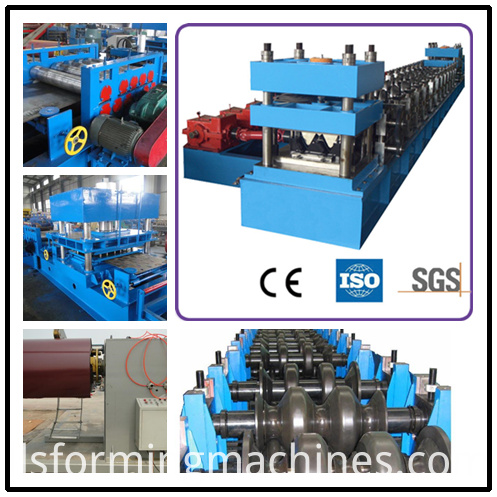

Steel Guard Rail Roll Forming Machine is mainly constituted of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer control system.
Operation and Maintenance:
1. Steel Guard Rail Roll Forming Machine, totally controlled by PLC, is fairly easy to operate. It can work automatically only through inputting the related production data, such as product number, length and punching size, etc;
2. If users need to adjust the machine or something else, they must firstly stop the machine before carrying out relevant operations;
3. Regular lubrication for chain wheel, bearing and speed reducer of expressway guardrail forming machines should be conducted carefully. And the forming rollers should be kept clean;
4. With high performance in operation, Steel Guard Rail Roll Forming Machine has little noise.
Quickly raw material information:
- Suitable to process :Colored steel plate, galvanized board
- Raw material :Q235
- Yield strength: 235Mpa
- Material thickness :3-4.5mm
- Material width :＜500mm
- Coil ID :Ф508±20mm
- Coil OD :≤Ф1200mm
- Coil capacity :≤5T
Quickly information of Guard Rail Roll Forming Machine:
- Rollers :15 groups
- Rolling material: Cr15 bearing steel
- Material of the cutting blade: Cr12mov
- Dimensions Approx :10m×1.2m×1.5m
- Power :37kw
- Productivity :12m/min
- Diameter of the roller :100mm
- Weight About :10T
- Voltage:380V 50Hz
- Processing precision Within:1.00mm
About the Hydraulic station of our Steel Guard Rail Machine,It is controlled by the gear pump. After filling the hydraulic oil into the hydraulic oil-tank, hydraulic pump driven shear punching operation at the same time to drink.
It is component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.
About the control box,we use Panasonic 1.5.7 inch touch screen,it is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life. It have many advantage,such as:
automatic fixed length, automatic counting and so on.
Automatic stop shear length control for Guard Rail Machine . Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.
Looking for ideal Guard Rail Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Guard Rail Machine are quality guaranteed. We are China Origin Factory of Guard Rail Machine. If you have any question, please feel free to contact us.
