Two Wave Highway Guardrail Forming Machine

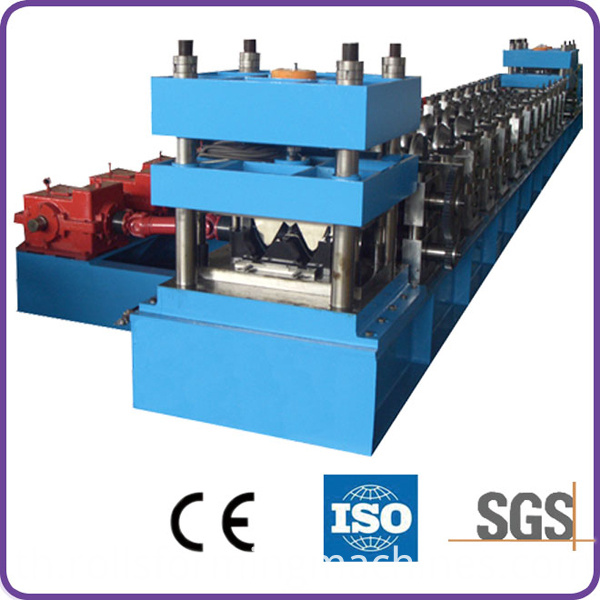

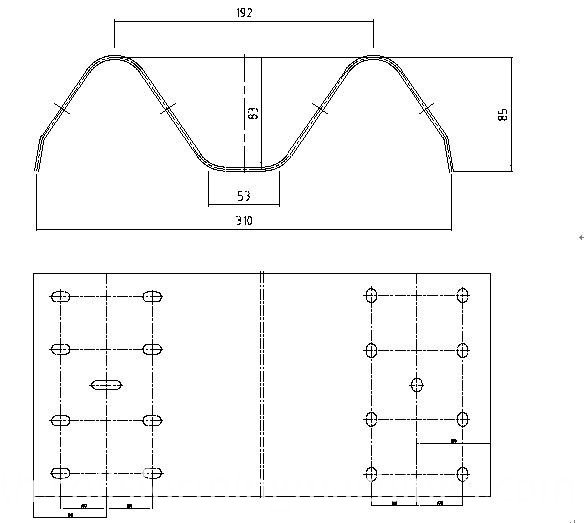

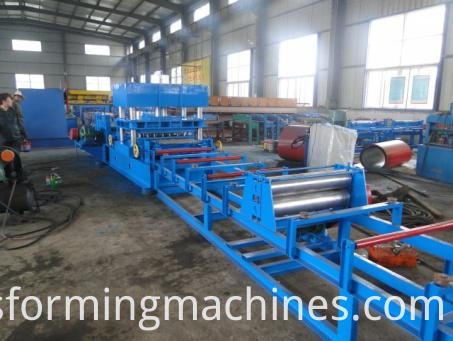

Two wave highway guardrail forming machine also known as highway guardrail forming machine, can be widely used for making a variety of guardrails, such as highway guardrail, fence and pasture fence.The highway guardrail forming machine is mainly consisted of uncoiler, punching system,feed leading table, main forming machine, cutting device, hydraulic station and computer control system.

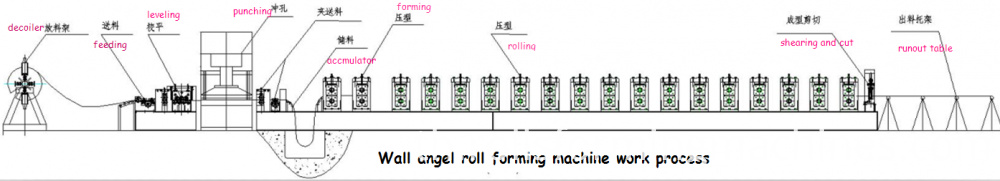

Working process:

Detailed information of Two Wave Highway Guardrail Machine:

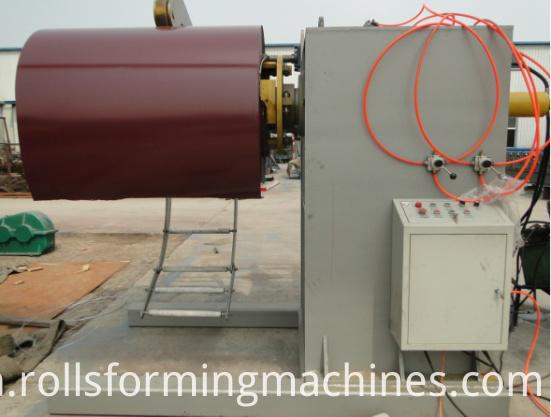

Hydraulic decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.Passive uncoil pulled by roll forming System.

1.ID:500-550mm

2. Coil width:500mm

3. Loading ability:5000kg

4. Hydraulic power:3kw

5.Motor:3kw

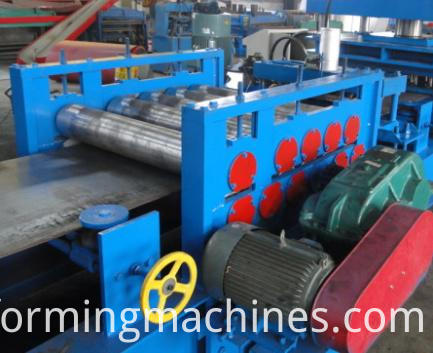

Feeding and leveling part

1. Roller material after quenching

2. 9 rows station for leveling: 4 5

3. The diameter of raw material 95mm ,45 steel after quenching

4. Feed a side wheel GCR15 raw materials, after quenching

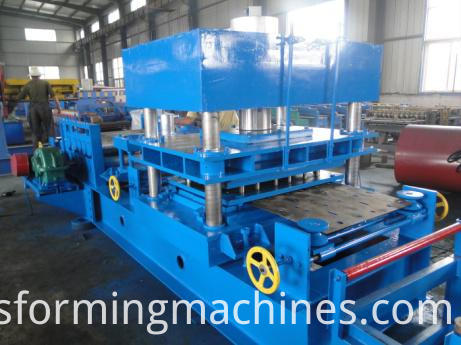

Punching and shearing part

1.Hydraulic punching, raw material after quenching Cr12,Which can be welded, which need to bolt

2.Shearing blade material:Cr12 after quenching.

3. Shear error: +/- 2mm

Feeding coil part

1. Feeding coil table:

2. Main power:3kw

3. Length:6M

Roll Forming Machine

Advantage: to make sure long time using, working steady and high speed.

1. Main-length: about 20.5*1.2*1.5m

2. Machine weight: 15.5 Ton

3. Voltage: customer choice

4. Fix wheel types: medium plate

5. Frame: 400# steel

6. Transmission: Chain

7. Shaft material: 45 steel after adjusting treatment, the diameter of 100mm, precision machining

8.Roller material: GCR15, after quenching, and after chrome wheels.High strength bolt

9. Rolling station:20 stations

10.Main power:45kw

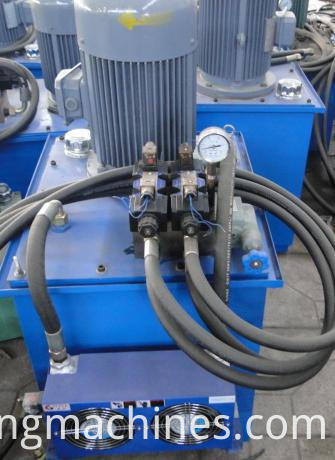

Hydraulic system

1.Power: 18.5kw

2.Hydraulic oil type: 46#

3.Component: the system includes a set of one or two sets of hydraulic oil tank, hydraulic pump, hydraulic pipe line four, two sets of solenoid valve.

Electrical system

Advantage:

1.Panasonic 1.5.7 inch touch screen is Japan's Panasonic brand, to ensure high speed and stability, accuracy and service life.

2.Panasonic PLC, Panasonic inverter

3. automatic fixed length

4. automatic counting

Automatic stop shear length control. Equipped with 5 movable switch, fuse, radiator, transformer and convenient operation and safety of leakage protector.

Product Categories : Guard Rail Roll Forming Machine
