Metal Floor Decking Roll Former
Metal Floor Decking Roll Former Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Suitable Material Type:GI/PPGI
Thickness:0.75-1.25mm
Length Tolerance:±2mm/6m
Working Speed:8-12 m/min Standard machine
Total Power:22KW
Total Weight: About 14T Up to final design
Pictures gallery
Un-coiler System of Metal Floor Decking Roll Former
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Coil feeding part of Metal Floor Decking Roll Former
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod
ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of lo
cate angle iron.
Forming device of Metal Floor Decking Roll Former
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when
it is working
Feature : Ensure stability , precision and lifetime.
Length of the main part:14200*1300*1400mm
Weight of main part:About 14 t
Voltage:380V/50HZ3Phase (as customer`s request)
Roller fixer:Guide column
feeding width:1250mm
Drive mode:chain
Material of rollers:45# steel with tempering
Material of shafts:45# steel with tempering
cutting:hydralic cutting
Number of rollers:30 rollers
Main power:15kw (Cycloidal planetary gear speed reducer)
Cutting device of Metal Floor Decking Roll Former
Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety
factor.
About why choose us

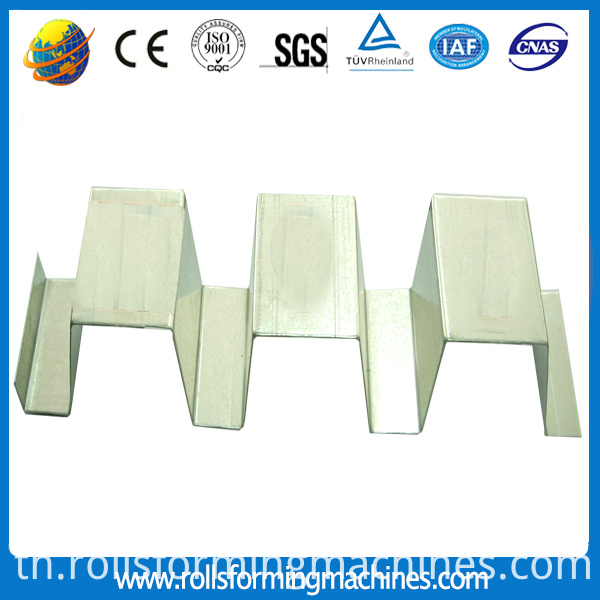

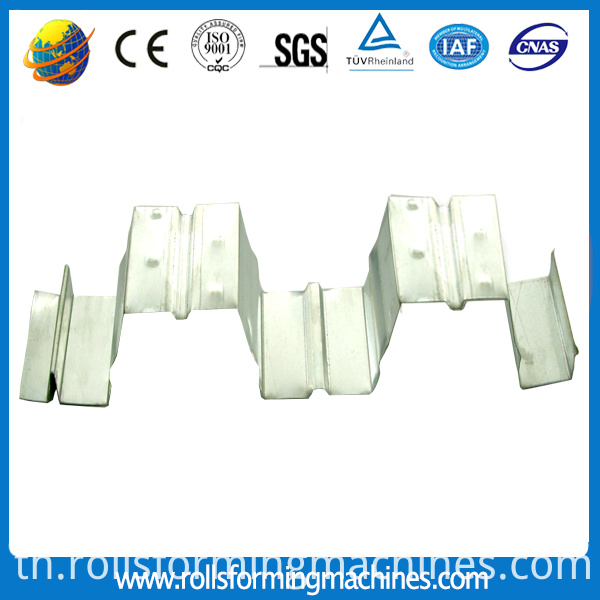

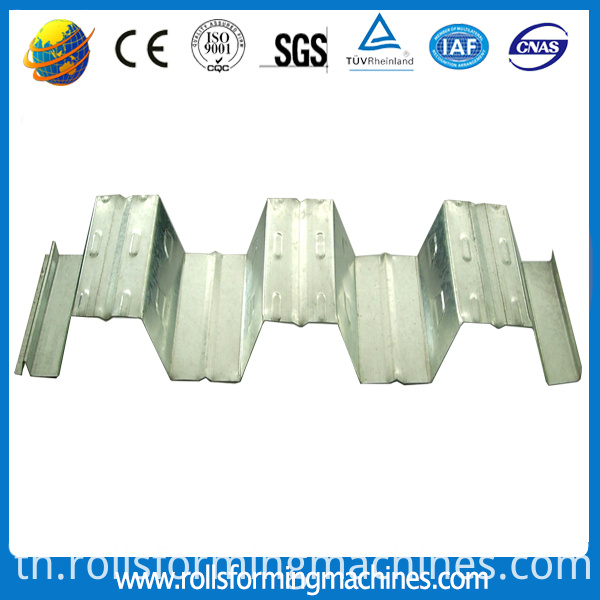

We can manufacture as per customer provided drawings or real objects of sectional materials, customization is welcome. The following are some floor decking panel profiles as reference.
Keeping in mind the diverse requirement of our clients we are involved in a wide range of Corrugated Roof
Wall Roll Forming Machine. These are quality tested by highly skilled quality controllers to render maximum client satisfaction. These are used for manufacturing corrugated roof walls and are highly acclaimed among our clients due to their hassle free performance. Moreover, we offer our products at economical prices.
Looking for ideal Metal Floor Decking Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Metal Decking Floor Roll Former are quality guaranteed. We are China Origin Factory of Metal Decking Roll Former. If you have any question, please feel free to contact us.
Product Categories : Floor Deck Roll Forming Machine
