Knauf Profile Machine Steel Frame Machine
Knauf Profile Machine Steel Frame Machine

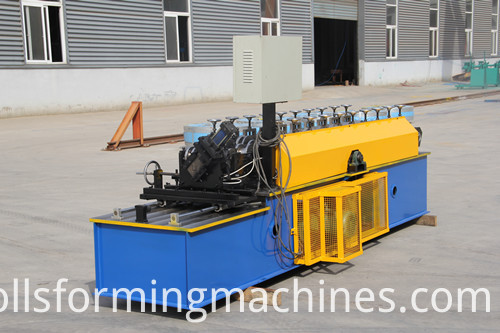

For Knauf Profile Machine Steel Frame Machine is a two-in-one machine, it combine with 60-27 and 27-28 profile, generally this machien use for drywall.
1. One machine either could be used to make U stud in various sizes
2. Able to make C stud in various sizes.
3. For making C and U without changing rollers.
4. Easy to adjust sizes just by sizing in computer.
5. Machine is controlled by PLC station.
Main elements of Knauf Profile Machine Steel Frame Machine
1.Decoiler
2.main Roll Forming Machine
3.punching maching(as customer's need)

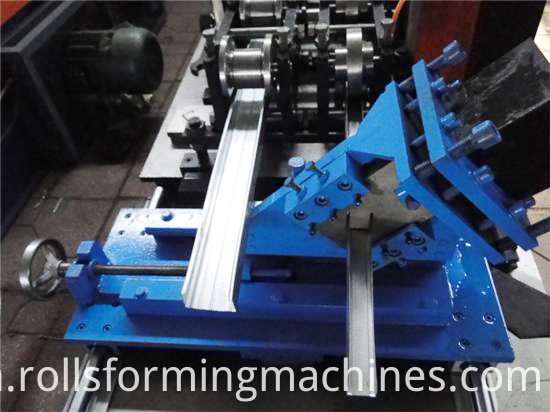

4.Cutting machine (normal cutting and flying track cutting saw)(as customer`s need choose one set)
5.PLC control
6.Knauf Profile Machine Steel Frame Machine Counter
7.hydraulic station
8. receiving table
Some main parameters of Knauf Profile Machine Steel Frame Machine
1.Working efficiency:25m/min or 50m/min
2.Processing material: GI
3.Material hardness: 550MPA-350MPA
4.Thickness of material: 0.5-1.2mm
5.Width of material: as you need
6.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

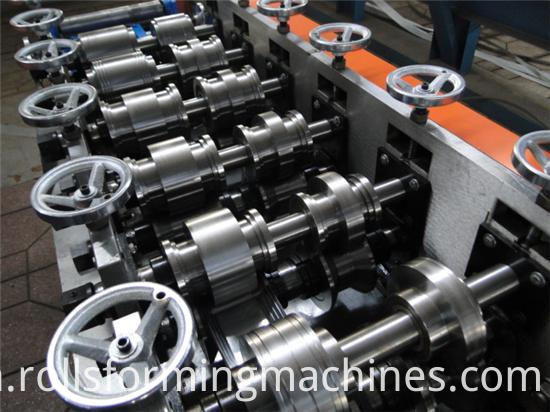

7.Number of rollers: 10 rollers
8.Drywall C stud Making Machine Roller fixer: guide column
9.Roller material: Gcr12 MoV quenched
10.Material of shaft: 45# steel
11.Diameter of shaft: 40mm
12. Main power: 3KW
13.Hydraulic power: 3KW
14.Hydraulic pressure: 20Mpa
15.Blade material:Gcr12 MoV quenched
16.Voltage: 380V, 50HZ, 3phase (adjustable by customer)
17.Drywall C stud Making Machine Frame: 25mm
18.Drive : gear, chain or case of different speeds(as customer`s demand)
19.Drywall C stud Making Machine Punching mould: each type one set
20.Punching machine: Gcr12 MoV quenched
21.Drywall C stud Making Machine Control system: Delta of Taiwan.
22.Automatic Drywall C stud Forming Machine color: yellow or blue
23.Lenth: 3000*800*1400mm
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
1. One year, and we will provide the technical support for the whole life.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and
USD50/person/day for salary.
3. Need one technician.
4. Training time: one week (contains the time of installation and adjustment)
Looking for ideal Knauf Profile Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Frame Machine are quality guaranteed. We are China Origin Factory of Steel Knauf Machine. If you have any question, please feel free to contact us.
