Steel Roll Forming Machine for Two Designs

Double Layer Sheet Roll Forming Machines /Roll Forming Machine/Steel Roll Forming Machine for Two Designs

Compared with two sets single layer roll forming machine, this kind of Double Layer Roll Forming Machine is more economic no mater on financial and labor.

Although this two layers machine can not product at the same time.But most our customers will still choose to buy one set double layer machine rather than two sets single layer machines no mater in South America, Africa and south east of Asia. So if you want our quotation, pls help us to confirm the profile at first by sending us your drawings or choosing one from the ones among I sent you.

Specification of double layer sheet roll forming machines

No. Main parameter
1 Length of the main part: About 8500 х 1650 х 1500 mm
2 Weight of main part: About 6.5 t
3 Voltage: 380 V/50 HZ 3 Phase (as customer`s request)
4 Roller fixer: Middle plate welded
5 Frame: 350 H steel welded
6 Frame thickness: 20 mm
7 Drive mode: Chain
8 Material of rollers: 45# steel, surface hard chromium plating.
9 Material of shafts: 45# steel
10 Diameter of shafts: Φ 80 mm
11 Number of rollers: Up layer: 13 rollers
Down layer: 15 rollers
14 Main power: 5.5 kw

Component included in Double Layer Sheet Roll Forming Machine

No. Name Unit Qty

1 Manual Decoiler set 1

2 Main forming machine set 1

3 PLC control system set 1

4 Hydraulic pump station set 1

5 Post cut set 1

6 Electric motor set 1

7 Output table set 1

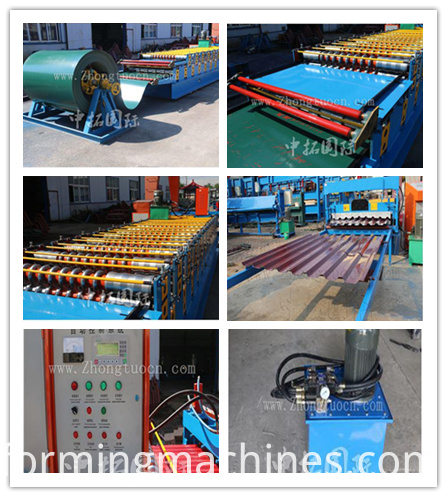

Some more pictures for our roll forming machine

FAQ

a. What other roofing sheet machine we can make:
1. Glazed Tile Roll Forming Machine

2.Color metal roof and wall sheet

b.What makes our machine different with orthers?
1. Pay more attention to details. For the surface grinding, roller grinding, we would like to make it perfect smooth, as if so, the finished product surface will have no scratch.

2. We customize machine stricktly according to the tech based not fully on the customer requirement as the tech team have more than 16 working experience. If some ideas is not practical, we will point it out at the first time.

3. We presist that only high quality machine can make customer satified.

c.Here some knowledge about the Roofing Sheet Roll Forming Machine:
1. How to make many different drawing profiles by one machine?
Normally speaking, one machine could produce many types drawing profile roofing sheet just by adjusting the roller spacer.
But if you do not have knowledge of machine, you can choose the double layer roll forming machines. For example, by double layer machine, you can either make round wave or trapezoid wave.

2.How to check roofing sheet machine quality?
When machine working, there will be finished product out, checking the edge of sheet can help you tell whether the machine swing or not when working.
Check the machine frame thickness, diameter thickness, roller diameter and others can help you tell the machine quality.
