ZT-005-05 Metal Door Frame Roll Forming Machine

Metal Door Frame Roll Forming Machine

Metal Door Frame Roll Forming Machine is a kind of Roll Forming Machine which is developed to make various kinds of metal door frames, by roll forming method. By this one metal door roll forming production line, you can finish punch holes, cutting end connection part and others.

Main Parameters:

Forming Roller Stations: 24 Stations

Forming Roller shaft: Ø65mm, 40Cr, quenching, treating

Forming rollers GCr15, quenching, hardness HRC50-58º

Forming Speed: 8-15 meters / min

Main motor: 7.5kw

Feed material thickness: (0.5-2.0) mm× L

Line speed Adjusted by Frequency Inverter

Power: 380V/3ph/50Hz

Run-out table mode: roller style

Line dimension: 15000×1000×1000mm

Composition of Metal Door Frame Roll Forming Machine:

1. De-coiler

• Loading capacity:1.5T

• Uncoiling width:500mm (according to the profile drawing)

• Inner diameter450-550mm

2. Feeding and Leveler

• Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

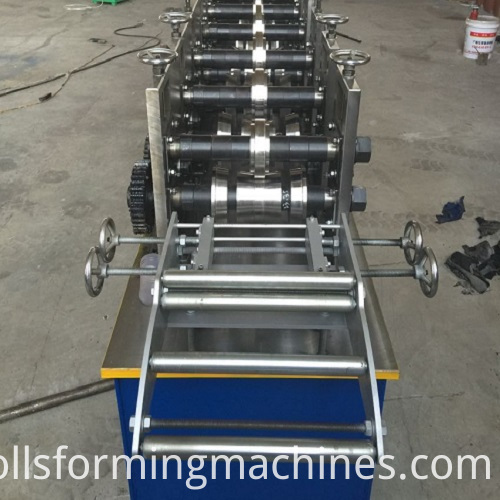

3. Roll Forming

• Roller material :45# steel, surface hard chromium plating.
• Shaft material : 45# steel with tempering
• Outer diameter of shaft :70mm
• frame : 400H steel
• Voltage: 380v,50Hz,3 phase As customer`s need
• Dimensions:15400 * 1800 *1800mm Final size depend on the design
• Main power: 8.5-15kw Depend on the thickness of material and size of machine
• Forming steps rollers: 12-20 stations Final rollers depend on the design
• Speed :8-15m/min

4.Cutting Part

• Material of blades : Gcr12MoV quenched




Sample of shutter door:

The video of Metal Door Frame Roll Forming Machine:
