Trapezoidal Metal Sheet Forming Machine ZT25-200-1000

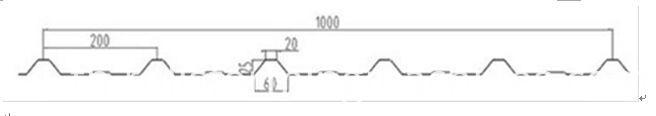

ⅠDrawings profile of roof tile:

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 02


Materials:

Processing material: colored steel plate, galvanized plate, or aluminum plate

Material thickness: 0.3- 0.8mm

Material hardness: 195 mpa---350 mpa

Formed width: 1000mm

Forming speed: 15m/min


Production process

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

drawings of working flow


1. 10T hydraulic decoiler

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 03




Main specification

1) Coil inner diameter: 450-550mm

2) Max coil out diameter:1300 -1600 mm

3) Max coil width: 1250mm

4) Carrying capacity:10T

5 ) Hydraulic expansion

6 ) Automatically feeding

7) Hydraulic, inner tight

8) Hydraulic power : 3 kw Drive power:3kw

9) Size:2.7×1.3×1.8m(L×W×H)



2. Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat,

parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 04





3. Main Roll Forming System

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive,chain transmission,

roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 05


No.

Main parameter

1

Length of the main part

8500х1650х1500mm

2

Weight of main part

4.5 t

3

Voltage

380V/50HZ3Phase (as customer`s request)
4

Roller fixer

Middle plate welded

5 Frame

350 H steel welded

6 Frame thickness

25mm

7

Drive mode

Chain

8

Material of rollers

45# steel, surface hard chromium plating.

9

Material of shafts

45# steel

10

Diameter of shafts

Φ80mm

11

Number of rollers

15 rollers

12

Main power

5.5kw



4. Cutting device

Feature : Ensure stability, precision and cutting speed

Function : Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 06



5. Counter

One counter gauges length, pulses, and decides length. Omron encoder for length measurement.

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 07

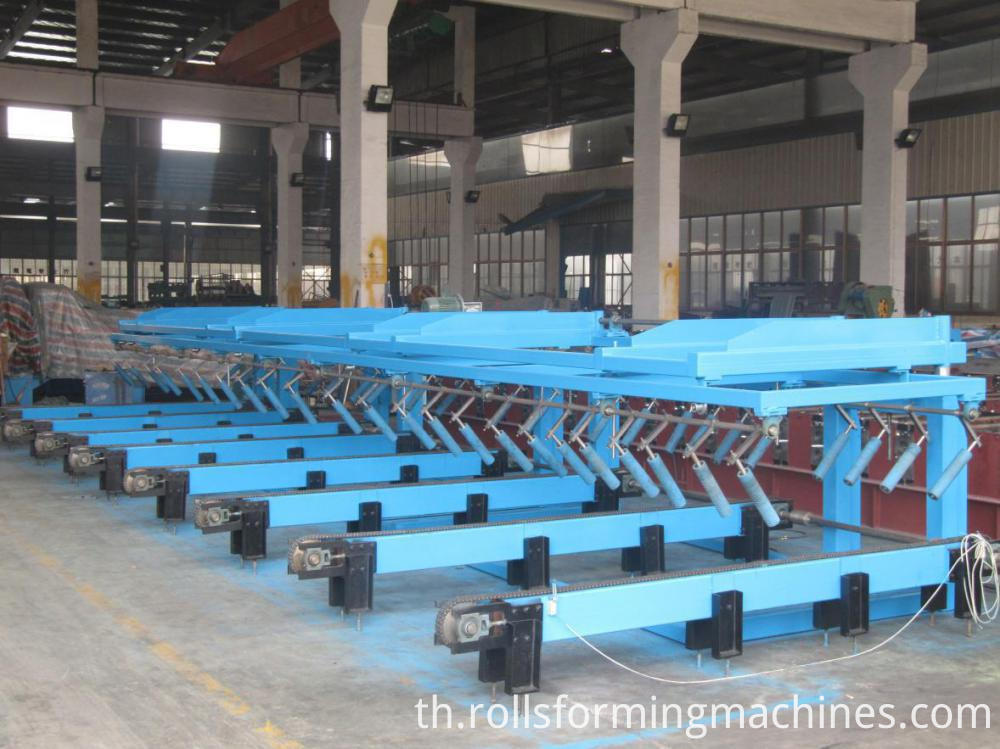

6. automatic stocker

Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 08



1) Size: 7000mmx4200mmx1600mm

2) Stacking principle: the top sheet will not damage the sheet below, the profile of the sheet below will match the profile of the top sheet;

3)Unloading of the finished products: mechanic, it will be possible to pick the stack using a fork-lift or in a similar manner ( fork-lift will be provided by customer).

4) Air cylinder swing arm size: 40mmx80mm

5) Transmission power: 4kw AC motor

6) Stacker length: 12m

7) Drive of transmission: 1 inch double line chain

8) Transmission roller: ZT1045 with chrome, diameter of roller is in 80mm

9) Length of capacity: 500-12000mm

10) Stacker height: Max 300mm

11) Color: blue or base on customer request



7. Controlling device

1) Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with

stability, precision and lifetime.

2) Other electric element are Delta

3) Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.


Screen
PLC
Text screen displayer
Taida DVP14ES from Taiwan

Trapezoid Roofing Panel Roll Forming Mahcine 06


8. Hydraulic

(include a set of hydraulic tank , a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves )

Origin

Power

Advanced hydraulic system from Taiwan

3kw

10

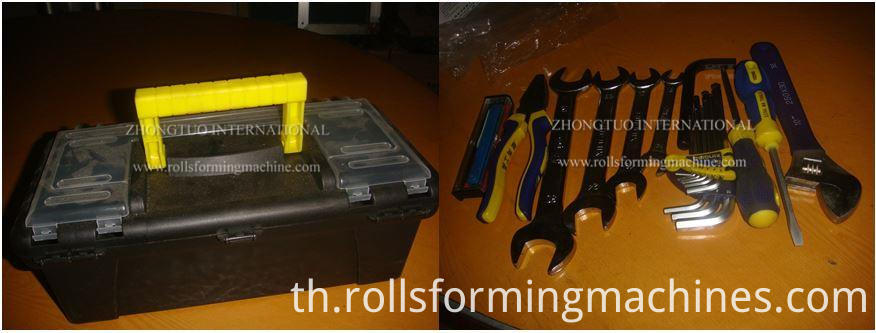

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs



Trapezoidal metal sheet forming machine ZT25-200-1000 ZT25-200-1000 03


Ⅴ Remarks

Payment terms

30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery

within 45 working days after receipt of deposit.

Packing

Nude packing with 1*40HQ container

Warranty

One year, and we will provide the technical support for the whole life.

Installation

1.Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50 / person/day for salary.

2. Need one technician

3. Training time: one week (contains the time of installation and adjustment)
