Product Description

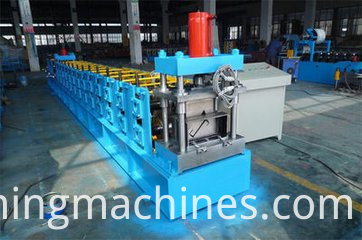

Z-Purlin Frame Forming Machinery

Z-Purlin Frame Forming Machinery:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

Suitable Material Type:GI/PPGI/AL

Thickness:2.0-3.0mm

Length Tolerance:±2mm/6m

Working Speed:25 m/min Standard machine

Total Power:6KW

Total Weight: About 6.2T Up to final design

Deatiled information of Z-Purlin Frame Forming Machinery

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

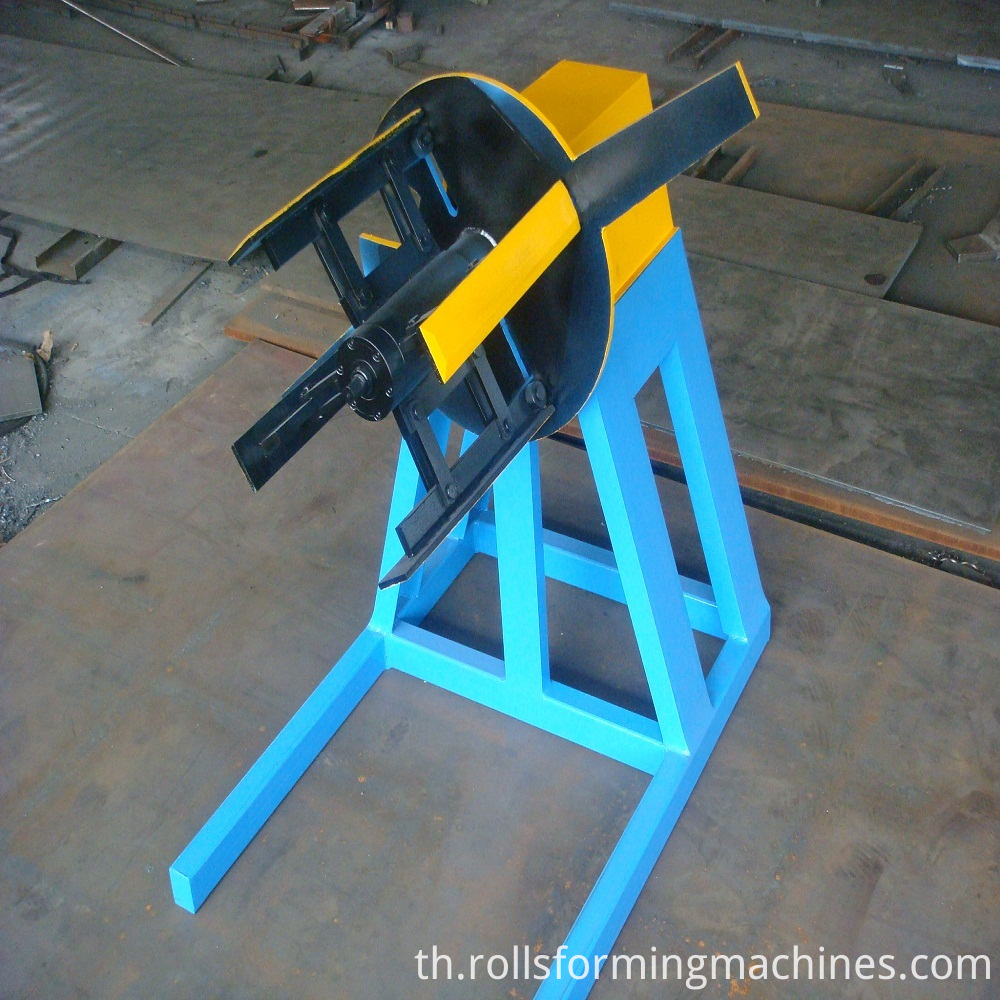

decoiler for Z-Purlin Frame Forming Machinery

Coil feeding part

Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

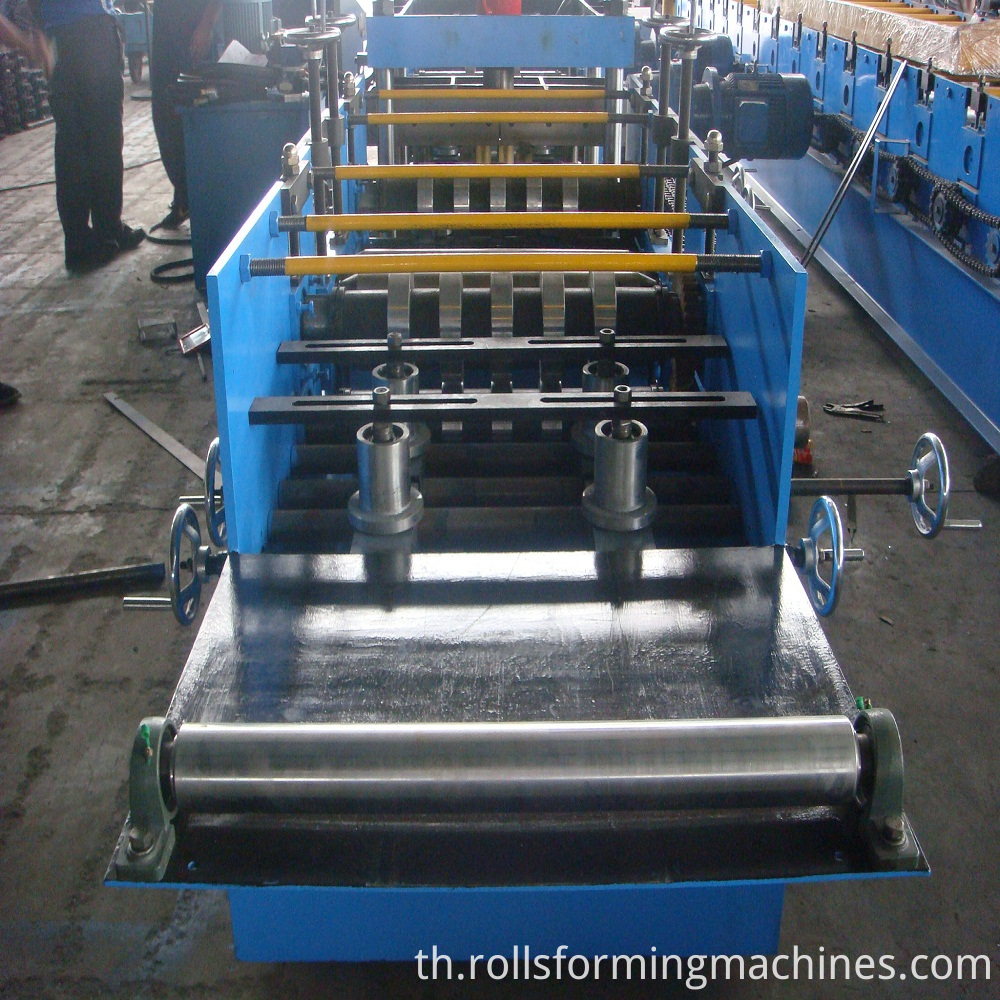

Z-Purlin Frame Forming Machinery

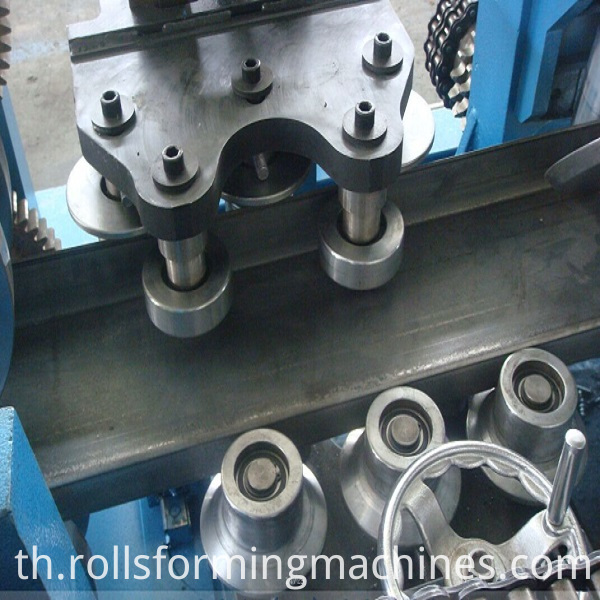

Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

Feature : Ensure stability , precision and lifetime.

Length of the main part:6800*800*1200mm

Weight of main part:About 6.2 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

Frame: Middle plate welded Memorial arch frame type

Frame thickness:25mm

Drive mode:Gear or chain

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

Diameter of shafts:φ80mm

Number of rollers:12rollers

Main power:11kw (Cycloidal planetary gear speed reducer)

Z-Purlin Frame Forming Machinery

Cutting device

Advanced hydraulic drive flying saw cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor. Flying saw punching Z steel equipment is a kind of Z steel machine cut, it adapt after cut. This cut off the way do not need to change model,You can added the punch in the flying saw device at the same time to achieve the effect of flying saw punching if you need.

Z-Purlin Frame Forming Machinery

Punching device

Features: punching is a part of the the flying saw cutting, is controlled by hydraulic station, mainly punches holes at Z steel , Whether puching is according to customer's need, easy to control use conveniently and long life.

Controlling device

Z-Purlin Frame Forming Machinery

Hydraulic

Z-Purlin Frame Forming Machinery

Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pcs

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also tr

ain your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service

a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

Packaging & Shipping


packing

Looking for ideal Z Purlin Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Z Frame Forming Machine are quality guaranteed. We are China Origin Factory of Z Steel Machine. If you have any question, please feel free to contact us.
