Zhongtuo Roll Forming Machinery Co., ltd

Drywall Cross Grid  Roll Forming Machine
Drywall Cross Grid  Roll Forming Machine
Drywall Cross Grid  Roll Forming Machine
Drywall Cross Grid  Roll Forming Machine
Drywall Cross Grid  Roll Forming Machine

Drywall Cross Grid Roll Forming Machine

Unit Price: USD 32550 - 8000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB,CFR,CIF,FCA
Min. Order: 1 Set/Sets
Delivery Time: 10 Days

Contact Now

Basic Info

    Model No.: ZT-005-33

    Shape: C Channel

    Perforated: Not Perforated

    Speed: 20m/min

    Roller Station: 10 Rollers

    Power: 3KW

    Roller Materail: Gcr12 MoV Quenched

    Drive: Gear

    Shaft Material: 45# Steel

    Shaft Diameter: 40mm

    Machine Size: 3000*800*1400mm

Additional Info

    Packaging: as customer's need

    Productivity: 20m/min

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: cangzhou

    Supply Ability: 50 sets/month

    Certificate: CE, ISO, SGS, IAF,CNAS

Product Description

Drywall Cross Grid Roll Forming Machine

Brief introduction

ZhongtuoDrywall Cross Grid Roll Forming Machine offer builders a competitive alternative to traditional wood trusses.This machine provides significant improvements over other drywall cross grid currently available. Flexibility and design advantages allow architects, engineers, contractors and owners' exceptional versatility and performance characteristics not available with any other type of truss material.Our machine could update with the fashio for providing new design increases material efficiency, ease of fabrication, simplicity of erection, and improved safety of material handling. Nomatter for running business or for big construction, this machine will be good helper for you.


Drywall Cross Grid Roll Forming Machine


Main elements of Drywall Cross Grid Roll Forming Machine

  • decoiler
  • main roll forming machine
  • punching maching(as customer's need)
  • flying track cutting saw
  • computer for PLC
  • counter
  • hydraulic station

Some main parameters of Automatic Drywall cross grid forming Machine

1.Working efficiency:20m/min

2.Processing material: GI

3.Material hardness: 550MPA-350MPA

4.Thickness of material: 0.3-1.2mm

5.Un-coiler system: 1.5 Ton decoiler (Manual Decoiler, electric decoiler , hydraulic decoiler)

6.Number of rollers: 10 rollers

7.Automatic Drywall cross grid forming Machine Roller fixer: guide column

8.Roller material: Gcr12 MoV quenched

9.Material of shaft: 45# steel

10.Diameter of shaft: 40mm

11. Main power: 3KW

12.Hydraulic power: 3KW

13.Hydraulic pressure: 20Mpa

14.Blade material:Gcr12 MoV quenched

15.Voltage: 380V, 50HZ, 3phase (adjustable by customer)

16.Frame: 25mm

17.Drive : gear, chain or case of different speeds(as customer`s demand)

18.Punching mould: each type one set

19.Punching machine: Gcr12 MoV quenched

20.Control system: Delta of Taiwan.

21.Drywall cross grid Making Machine color: yellow or blue

22.Lenth: 3000*800*1400mm

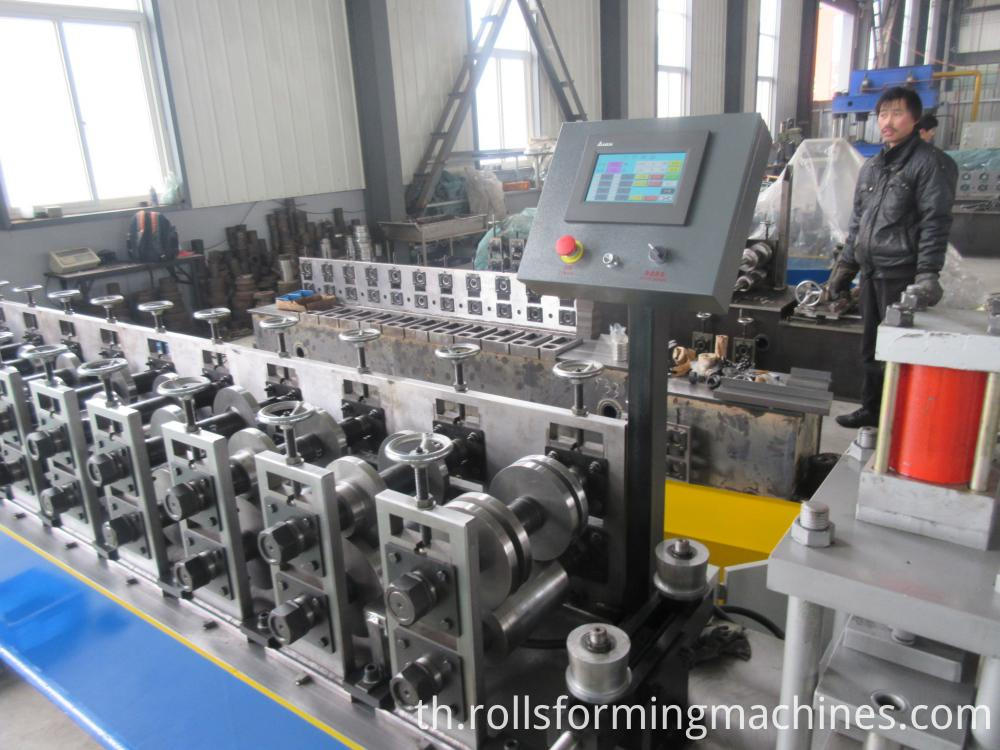

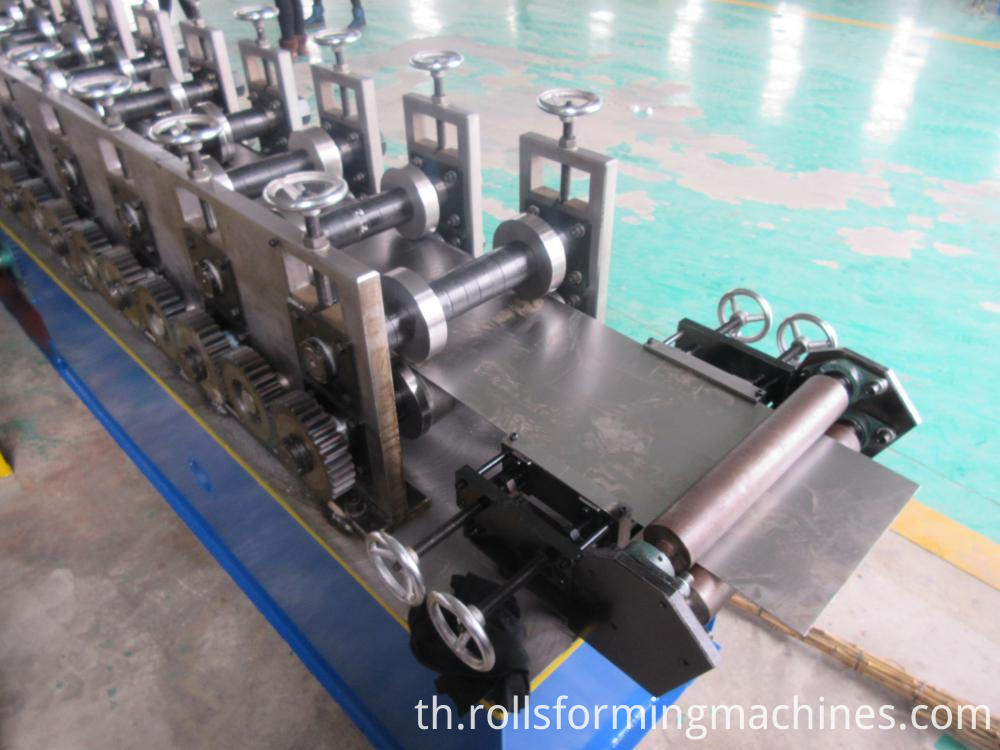

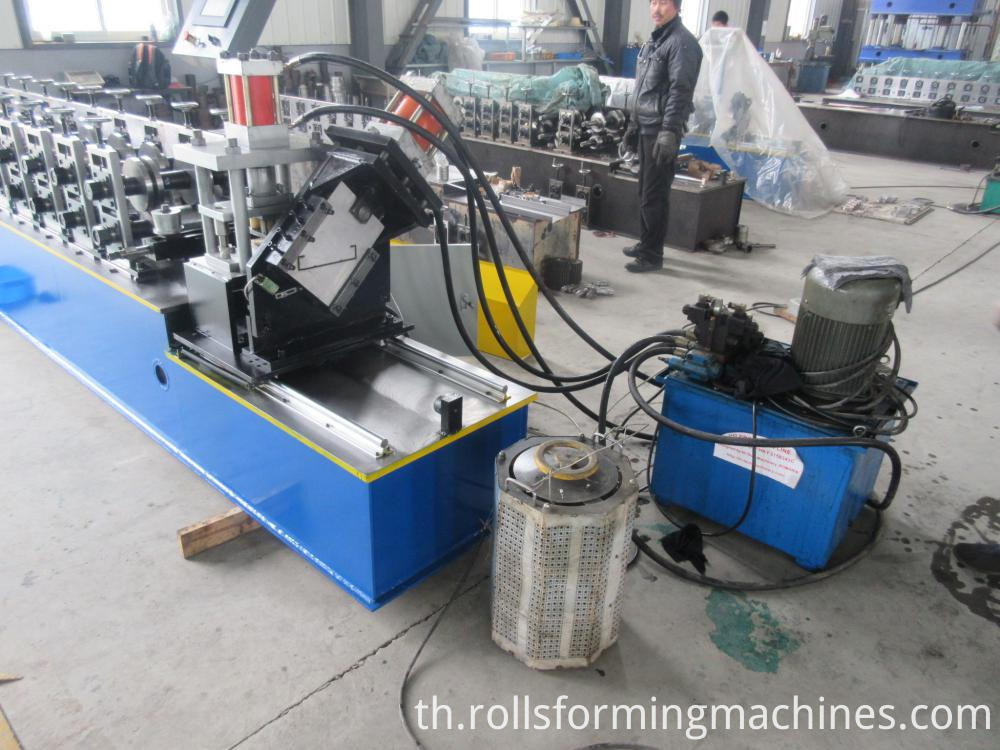

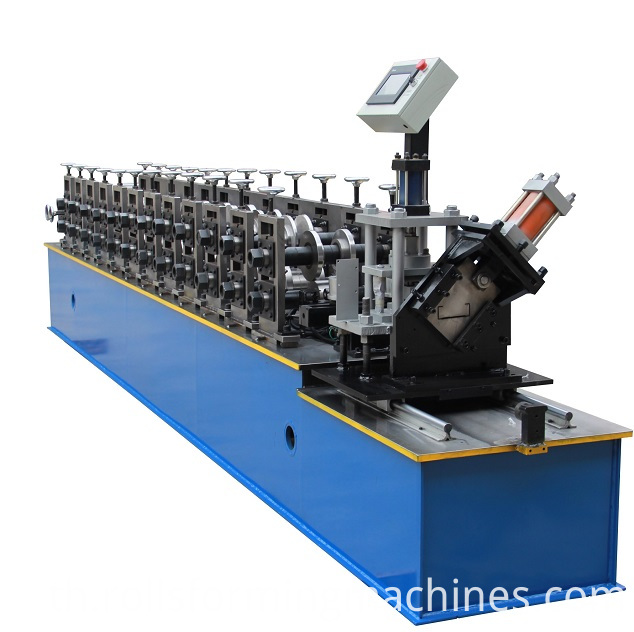

More pictures for your reference:

Drywall Cross Grid Roll Forming Machine


Drywall Cross Grid Roll Forming Machine


Automatic Drywall Cross Grid Forming Machine


Drywall Cross Grid Making Machine






Looking for ideal Drywall Cross Grid Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Drywall Cross Grid Forming Machine are quality guaranteed. We are China Origin Factory of Drywall Cross Grid Making Machine. If you have any question, please feel free to contact us.

Product Categories : C/U/ Channel & T Bar Roll Forming Machine > Drywall Profile Roll Forming Machine
